Flying Testbed Fuselage for Dave Cushman's Experiments

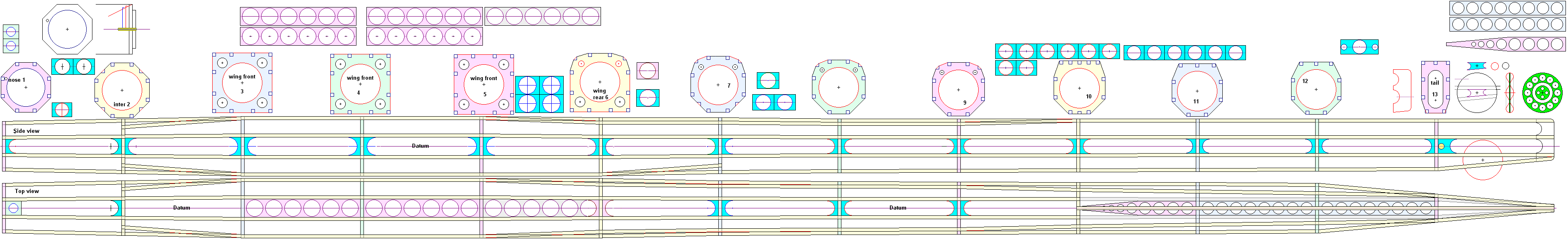

This drawing can be downloaded and printed to form a building template and templates for many of the individual parts. (it is very wide, hence the need to scroll) The design is based on 2 mm square stringers and the interior diameter of the bulkheads that surround rubber space are 25 mm. Bulkheads are 1/64" birch ply with balsa laminations added each side to bring up to 2 mm thickness.

flat areas allow for temporary mounting of various wings, under carts and tails using rubber bands.

Flying Testbed fuselage
